Svbony SV220 7nm Dual-Band Nebula Filter Ha & OIII

Name: Svbony SV220 7nm Dual-Band Nebula Filter Ha & OIII
Rating: 5.00 (3 reviews)

by Svbony

SKU

$156.00 - $227.00

$156.00

$104.00

$104.00 - $168.00

$104.00

FREE SHIPPING FOR ORDERS OVER 500$* 🆓🚚😃

*Some exceptions may apply. More info

Quantity

📦 We Have it in Stock? We're on it, shipping your order on the same day. *(Ordered before 1PM & Business Hours only / This is an estimation and may vary)

🛫 If the item is unavailable: It may be in transit to us or on order with the supplier. If not, we will promptly place the order. In case of delays, we will do our best to keep you informed.

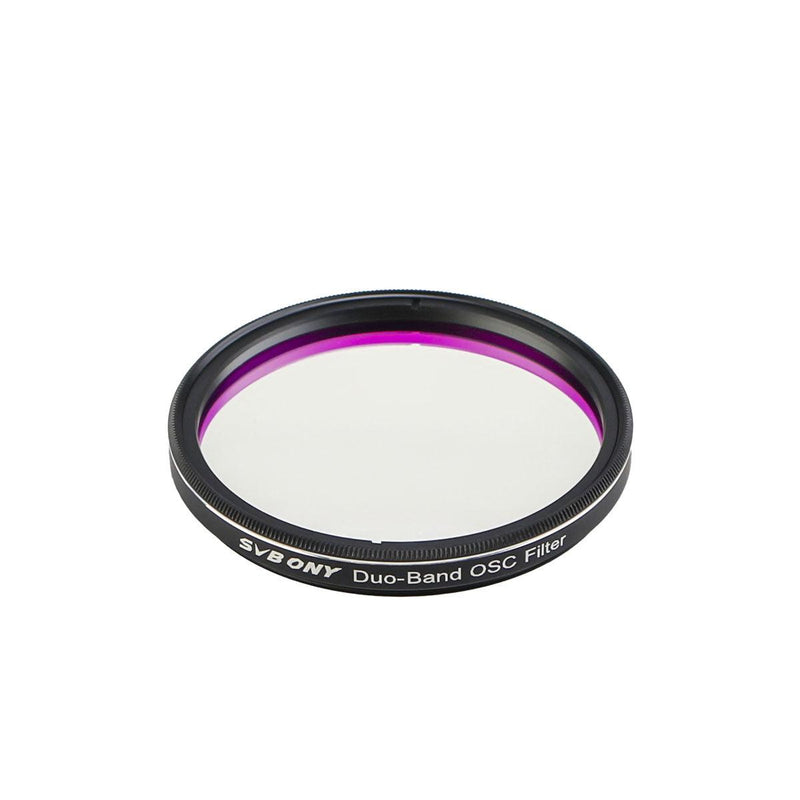

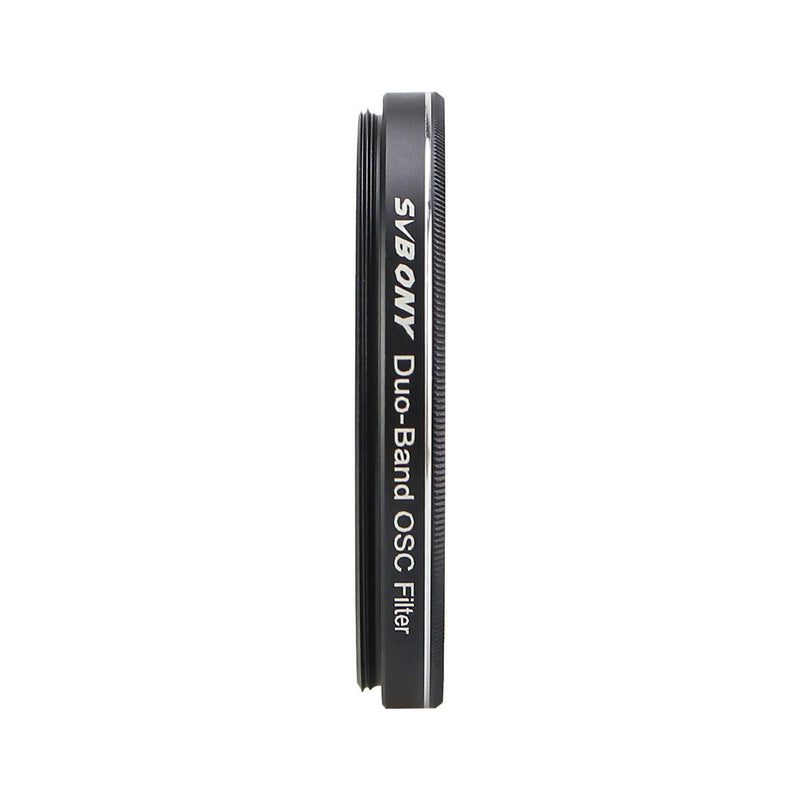

Svbony 7nm Dual-Band Nebula Filter Ha & OIII

Dual Narrow bandwidth H-Alpha/O-III 7nm narrowband filter properly designed for astrophotography both in light polluted
Take color images without needing to combine images with multiple filters
Useful for imaging emission nebulae, planetary nebulae and supernova remnants
Designed to sharply cut off the inference of artificial light from sodium vapor or mercury vapor street lights and other unwanted disturbance like sky glow

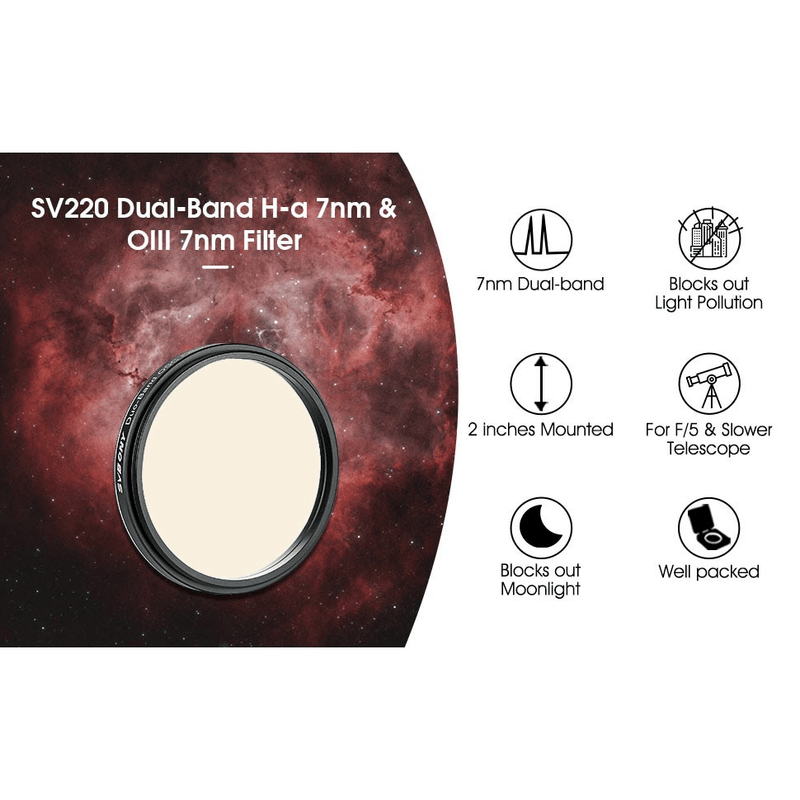

SV220 Dual-Band 7nm Nebula Filter

Dual Narrow bandwidth H-Alpha/O-III 7nm narrowband filter properly designed for astrophotography both in light polluted
Allows for imaging in bright man-made light pollution and moonlit conditions
Take color images without needing to combine images with multiple filters
Most useful for One-Shot Color cameras
Useful for imaging emission nebulae, planetary nebulae and supernova remnants
High transmission and sharp cut-off can greatly enhance the contrast and bring out the most detailed information for those deep-sky objects
Designed to sharply cut off the inference of artificial light from sodium vapor or mercury vapor street lights and other unwanted disturbance like sky glow
The duo-band narrowband filter is not suitable for visual observation and not designed for imaging or observing the Sun
Be aware that the SV220 is not a great fit for fast telescopes, some users reported that the Duo-Band OSC Filter paired with the RASA caused band shift, thus clipping the HA data.

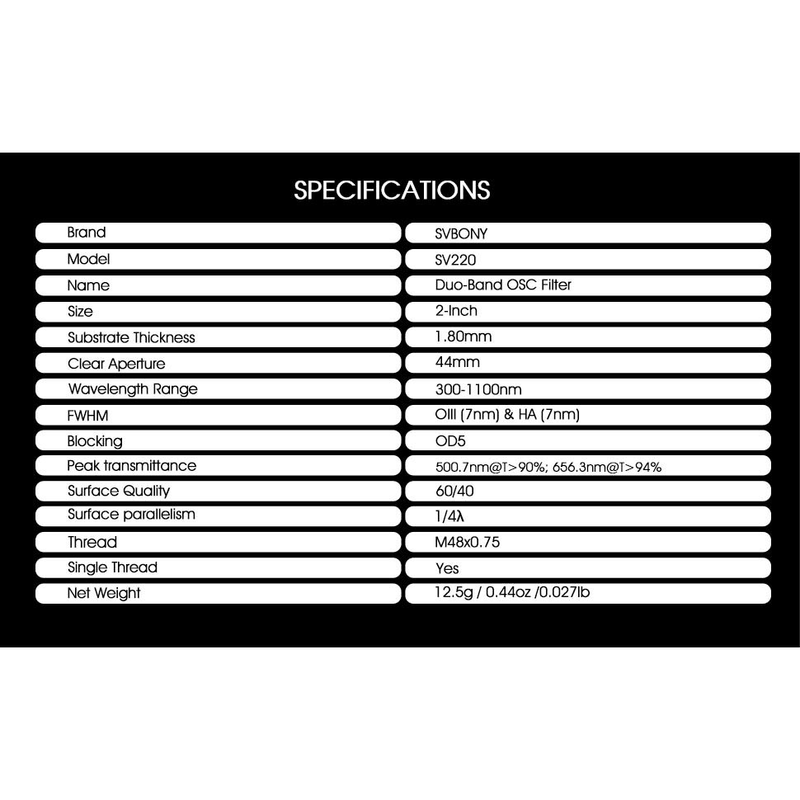

Technical Specifications

Brand	SVBONY	SVBONY
Model	SV220	SV220
Name	Duo-Band OSC Filter	Duo-Band OSC Filter
Size	2-Inch	1.25-Inch
Substrate Thickness	1.80mm	1.85mm
Clear Aperture	44mm	26mm
Wavelength Range	300-1100nm	300-1100nm
FWHM	OIII (7nm) & HA (7nm)	OIII (7nm) & HA (7nm)
Blocking	OD5	>OD5

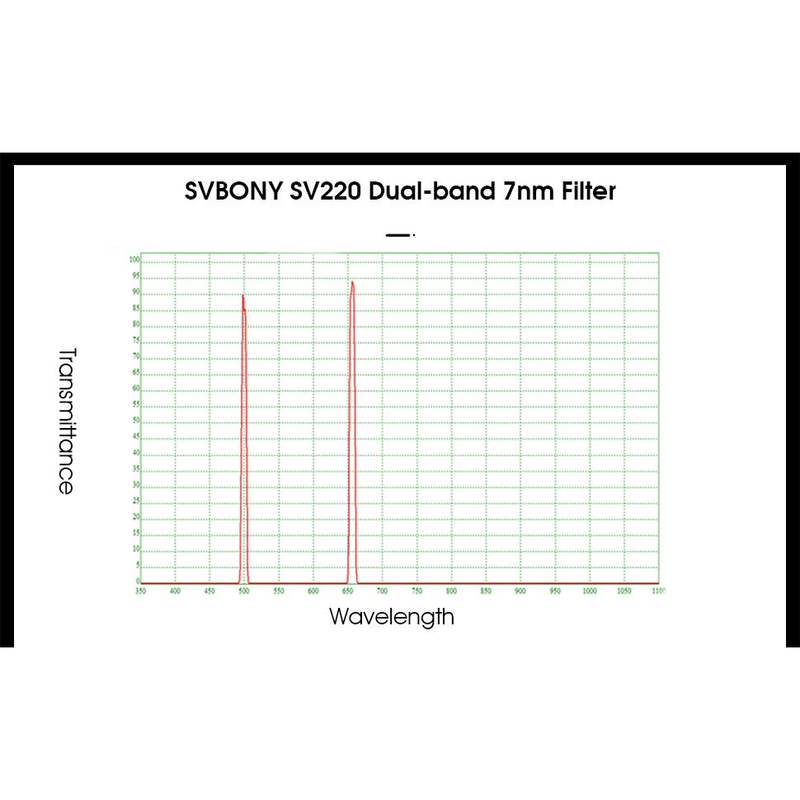

Peak transmittance	500.7nm@T>90%; 656.3nm@T>94%	500.7nm@T>90%; 656.3nm@T>94%
Surface Quality	60/40	60/40
Surface parallelism	1/4λ	1/4λ

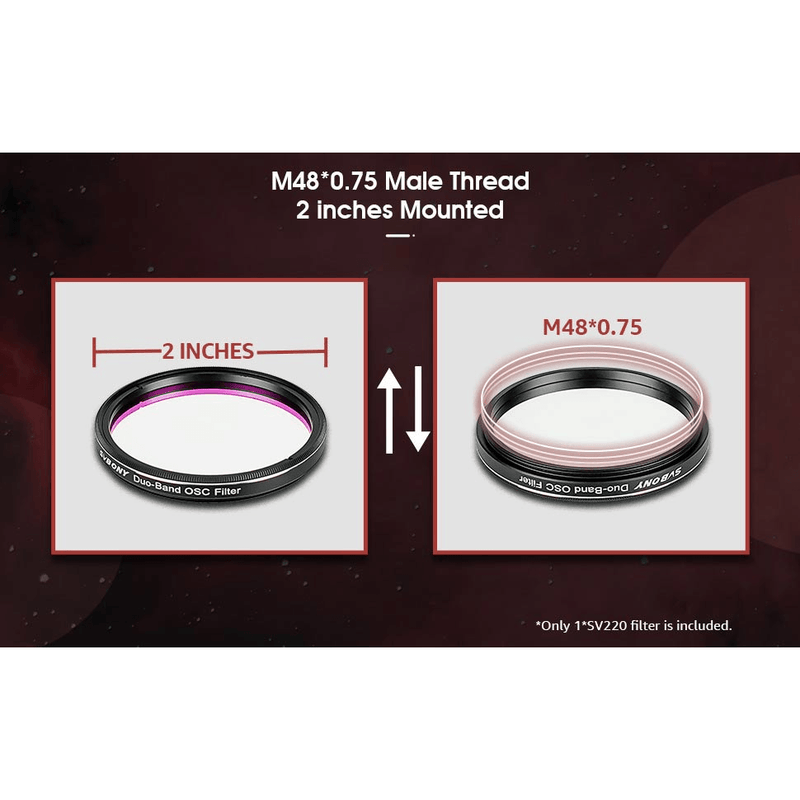

Thread	M48x0.75	M28.5*0.6
Single Thread	Yes	Yes
Net Weight	12.5g / 0.44oz /0.027lb	7g

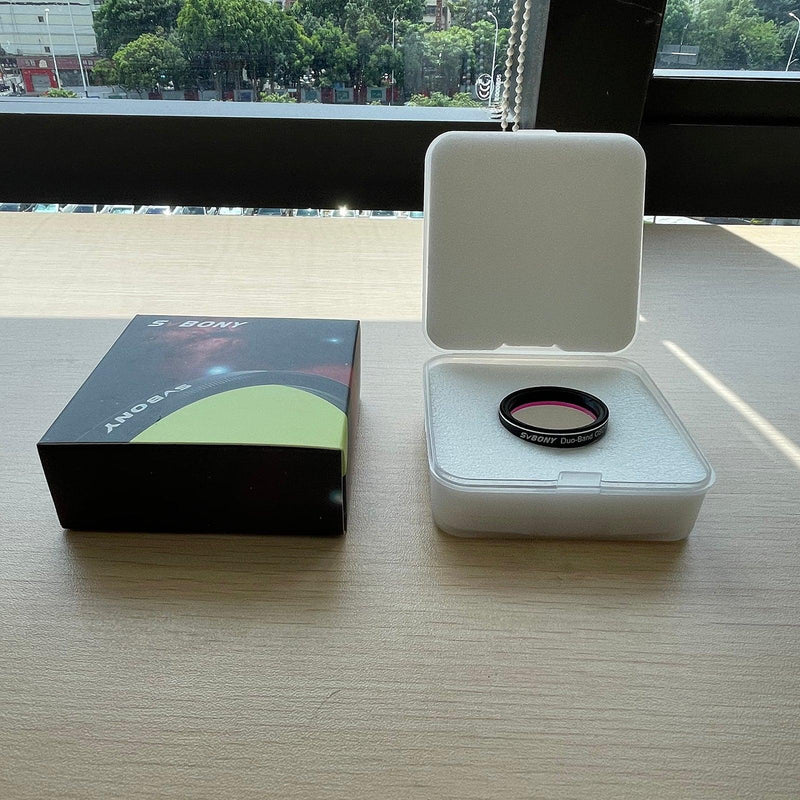

In the Box

Svbony 7nm Dual-Band Nebula Filter at selected size :

1.25"
2"

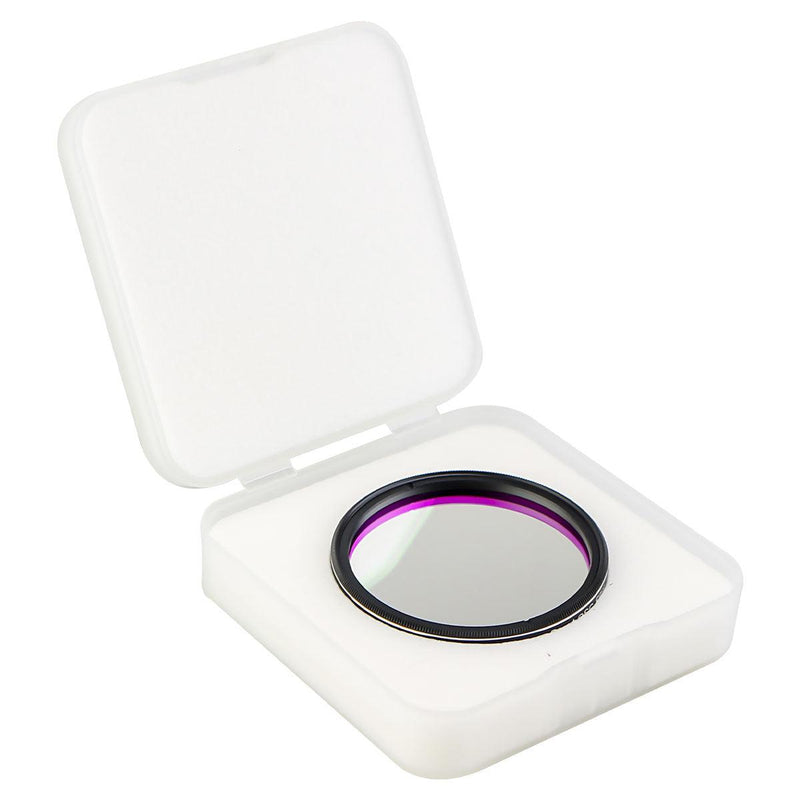

and 1x Plastic case

SV220 Dual-Band 7nm Nebula Filter

Manuals & Warranty

Svbony 1-Year Warranty

5 stars: 3 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Svbony 7nm Dual-Band Nebula Filter

I have to admit this is an excellent filter, currently used with a ZWO294MC Pro camera. I have used it with a 130mm APO and Sigma 150mm lens and the images of objects like the Veil Nebula and North American Nebula show exceptional details.

An excellent investment!!!

Svbony 7nm Ha OIII narrowband filter.

This is my second Svbony 7nm filter I like the the quality of the images, I will recommend this filter for narrow band Astrophotography.

Awsome ! Big bang for your buck
This Duel- band 7 nm filter is on steroids delivers superior results in Ha and Olll with a nice dark background, star images are well defined with very little halo as compared to other well known brands. This is a must have if you are dealing with light pollution or a full moon during your imagine session
